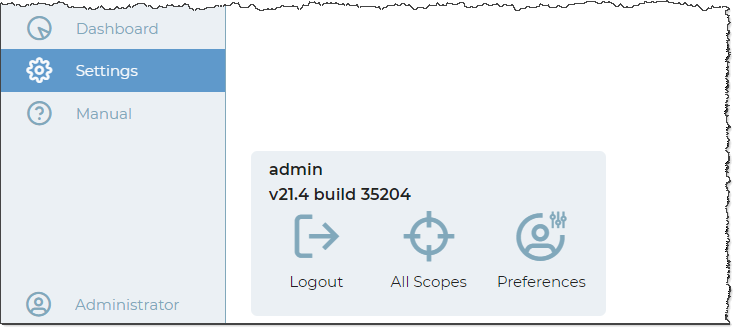

User Button

The user button is located at the bottom of CLOUDFLOW side bar.

The user button either carries your name or the role that you hold (e.g. Administrator), and the version of CLOUDFLOW you are running. It also leads to 3 tabs:

1. Log Out: Here you can safely log out of CLOUDFLOW.
2. All Scopes: Here you can select a scope that is available for your user profile. See Scopes.
3. Preferences: Here you can define user preferences. These override the global Settings.
   • Localization: Language: here you can define the user interface language.
   • Units:
     • Length: here you can define the length unit. In the decimal precision field you can define the number of digits after the decimal mark.
     • Small Length: here you can define the length unit of small distances. In the decimal precision field you can define the number of digits after the decimal mark.
     • Distortion: here you can define the distortion unit. In the decimal precision field you can define the number of digits after the decimal mark.
     • Scaling: here you can specify the (fixed) scaling to use while printing the file.
     • Text: here you can define the text unit. In the decimal precision field you can define the number of digits after the decimal mark.
     • Resolution: here you can define the resolution unit. In the decimal precision field you can define the number of digits after the decimal mark.
     • Ruling: here you can define the ruling unit. In the decimal precision field you can define the number of digits after the decimal mark.
   • Change password: Here you can define and change your password.
   • Proofscope: Live Rendering: enable this slider to render in real-time.
   • Versions
     • CLOUDFLOW: here you can see your CLOUDFLOW version.
     • PACKZFLOW: here you can see your PACKZFLOW version.
