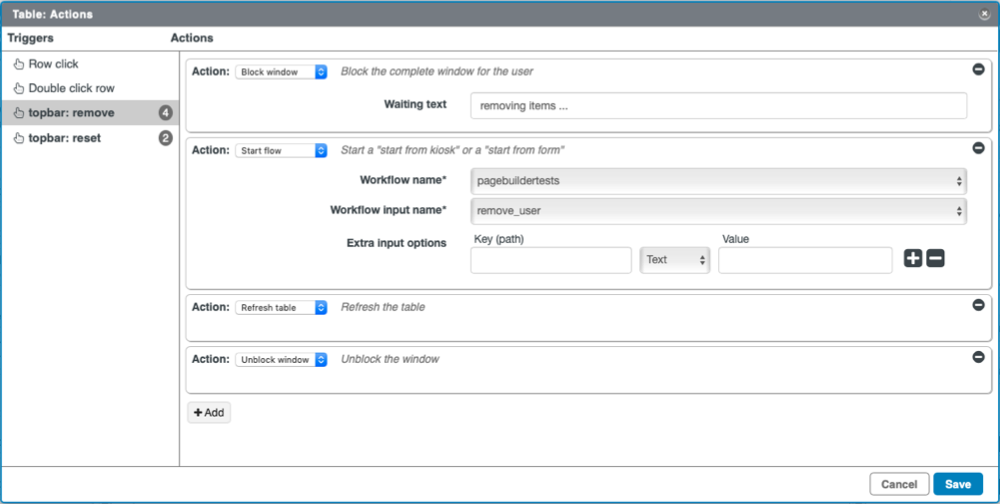

This is an overview of the available Actions. You can create multiple Actions in one ,
that are executed consecutive. You can for example block a window, start a workflow,
refresh a table and then unblock the blocked window:
Refresh page
With this Action the page will be refreshed when the selected trigger is
activated.
Redirect to
With this Action you will be redirected to another web page when the selected trigger
is activated.
Url: here you can define the URL of the web page
where you will be directed to. You can use variables to build up the URL.
Select the pencil to open Expression Builder.
Open in new tab: if you select this checkbox, the
page will be opened in a new tab.
Variables input: here you can define the variables to
pass as parameters to the redirected URL. See Working with Page Variables for more information on
variables.
Dialog
With this Action a dialog box is displayed when the selected trigger is activated.
Title: here you can define the title to appear in the
upper left corner of the dialog box.
Top: here you can define the position of the
dialog.
Width: here you can define the width (in pixels) of
the dialog box.
Height: here you can define the height (in pixels) of
the dialog box. The default is auto.
Modal: if you select this checkbox, the user is
forced to interact with the dialog before the user can go back to using the
page.
Url*: here you can define the URL of the page to be
used to display the contents of the dialog box.
Note: You can only use
Pagebuilder components URLs.
Variables input: here you can define variables to
pass. See Working with Page Variables for more information
on variables.
Start Flow
With this Action a CLOUDFLOW workflow runs when the selected trigger is activated.
Workflow name*: here you can define the name of the
CLOUDFLOW workflow. You should only use workflows that start with a
Start From Web Request node.
Workflow input name*: here you can define the input
name of the workflow.
Extra input options: here you can define extra input
variables to start a workflow.
Key (path): here you can define the key
(path) of the variable that you want to pass to the workflow. You
can use dot notation.
data type: here you can define the data type
to interpret the data.
Value: here you can define the value of the
key variable that you want to pass to the workflow.
Close me
With this Action the dialog or disclosure panel closes when applicable.
Block Window
With this Action you can block the window and add a text while the window is
blocked.
Unblock Window
With this Action you can unblock a blocked window.
Refresh table
With this Action the table will be refreshed when the selected trigger is
activated.
Open Folder
With this Action a folder is opened on your desktop. Enter the folder URL in the
field. Select the pencil to open Expression Builder.
Note: This action is only
available in case CLOUDFLOW Plug-in Suite is activated.
See CLOUDFLOW Plug-in Suite for more information.
Reveal File
With this Action a file is revealed on your desktop. Enter the file URL in the field.
Select the pencil to open Expression Builder.
Note: This action is only
available in case CLOUDFLOW Plug-in Suite is activated.
See CLOUDFLOW Plug-in Suite for more information.
Open Proofscope
With this Action the asset is opened in PROOFSCOPE when the selected trigger is
activated.
Variable name with url*: here you can define the name
of the variable that contains an encoded CLOUDFLOW URL. This is the key name
of the row object where the URL of the asset is linked to.
Open with Cloudflow topbar: if you select this
option, the CLOUDFLOW topbar is displayed.
Open Asset Viewer
With this Action the asset is opened in ASSETS when the selected trigger is
activated.
Variable name with url*: here you can define the name
of the variable that contains an encoded CLOUDFLOW URL. This is the key name
of the row object where the URL of the asset is linked to.
Note: This action is only available in case of image clicks. You can add image
clicks by defining an image column in Table and
Job table components.
Download file
With this Action the asset is downloaded when the selected trigger is activated.
Url: here you can define the CLOUDFLOW URL of the
asset you want to download.
